Modeling soybean canopy cover

Source: vignettes/modeling_soybean.Rmd
modeling_soybean.Rmd

Estimating soybean canopy development phases

We use canopy-cover data from the 2022 soybean season collected with ETH Zurich’s Field Phenotyping Platform (Keller et al., 2026). The dataset contains 78 plots measured on 30 dates, with canopy cover expressed as a proportion from 0 to 1. The seasonal trajectories include canopy expansion, a period of maximum cover, and canopy decline. We use a piecewise function to estimate four transition times: t1, the onset of canopy expansion; t2, the start of the maximum-cover plateau; t3, the onset of canopy decline; and t4, the end of canopy decline. The parameters k and n represent maximum and terminal canopy cover, respectively.

data(dt_soybean_22)
head(dt_soybean_22)
#> # A tibble: 6 × 7
#>   location  Year sowing_date harvest_date plot.UID    time_since_sowing
#>   <chr>    <dbl> <date>      <date>       <chr>                   <dbl>
#> 1 Eschikon  2022 2022-04-21  2022-09-23   FPSB0160001                 0
#> 2 Eschikon  2022 2022-04-21  2022-09-23   FPSB0160001                22
#> 3 Eschikon  2022 2022-04-21  2022-09-23   FPSB0160001                25
#> 4 Eschikon  2022 2022-04-21  2022-09-23   FPSB0160001                29
#> 5 Eschikon  2022 2022-04-21  2022-09-23   FPSB0160001                34
#> 6 Eschikon  2022 2022-04-21  2022-09-23   FPSB0160001                40
#> # ℹ 1 more variable: Canopy_cover <dbl>

1. Exploring data

We start with explorer(), which summarizes the series and lets us look at the temporal evolution of every plot before model fitting.

ex <- explorer(dt_soybean_22, x = time_since_sowing, y = Canopy_cover, id = plot.UID)
names(ex)
#> [1] "summ_vars"      "summ_metadata"  "locals_min_max" "dt_long"
#> [5] "metadata"       "x_var"
plot(ex, type = "evolution", add_avg = TRUE)
#> Warning: Removed 32 rows containing missing values or values outside the scale range
#> (`geom_line()`).

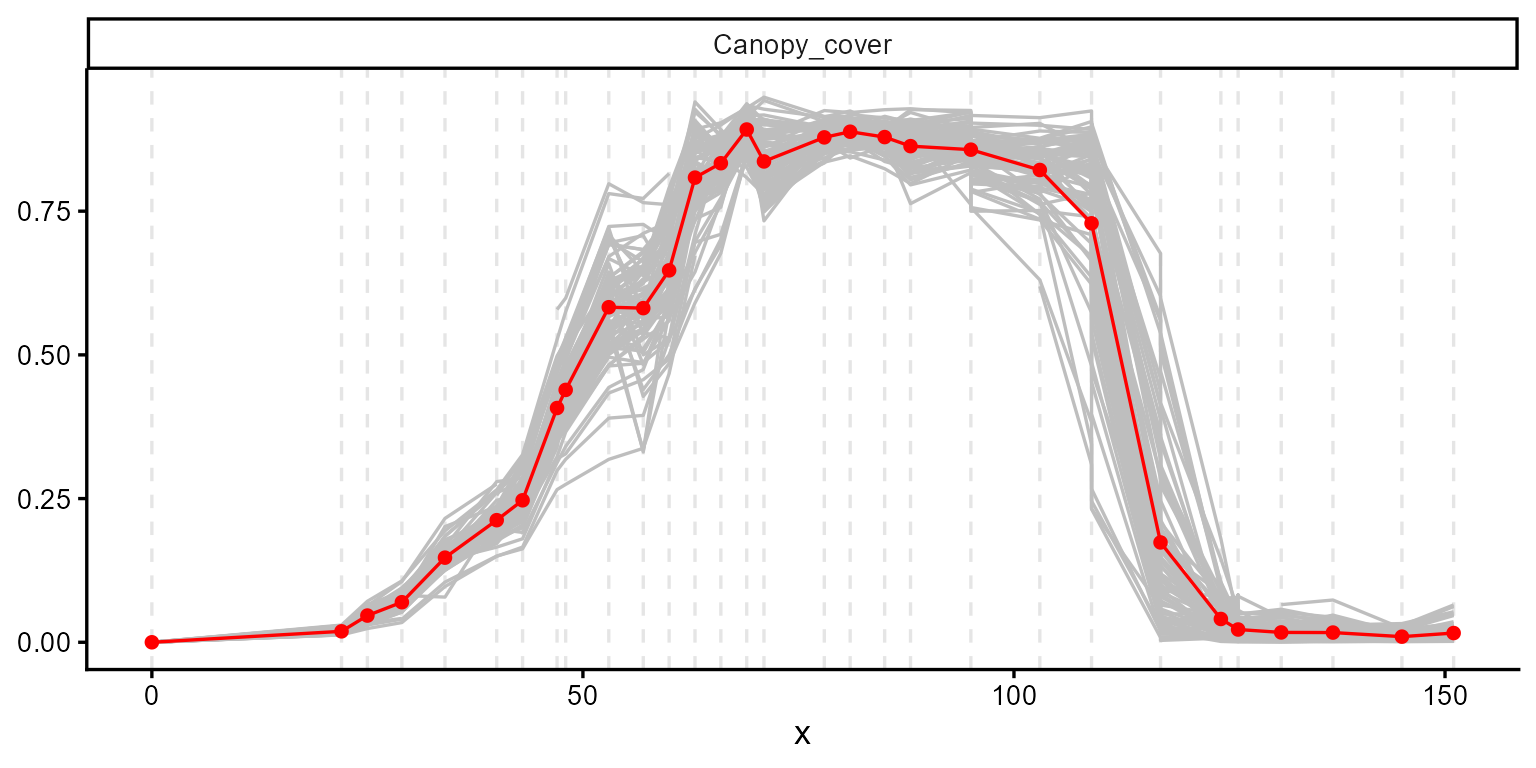

plot evolution The curve starts flat, rises steeply, plateaus near 0.87, then declines through senescence but stops above zero. The curve does not return completely to zero, indicating that some green canopy cover remains at the end of the observed period. This remaining cover is represented by the parameter n.

2. Regression function

The function takes time (t) first and the parameters after:

\[\begin{equation} f(t; t_1, t_2, t_3, t_4, k, n) = \begin{cases} 0 & \text{if } t < t_1 \\ \dfrac{k}{t_2 - t_1} \cdot (t - t_1) & \text{if } t_1 \leq t \leq t_2 \\ k & \text{if } t_2 < t \leq t_3 \\ n + (k - n) \cdot \dfrac{t_4 - t}{t_4 - t_3} & \text{if } t_3 < t \leq t_4 \\ n & \text{if } t > t_4 \end{cases} \end{equation}\]

fn_piecewise <- function(t, t1, t2, t3, t4, k, n) {
  ifelse(
    test = t < t1, yes = 0,
    no = ifelse(
      test = t <= t2, yes = k / (t2 - t1) * (t - t1),
      no = ifelse(
        test = t <= t3, yes = k,
        no = ifelse(
          test = t <= t4, yes = n + (k - n) * (t4 - t) / (t4 - t3),
          no = n
        )
      )
    )
  )
}

Before fitting anything, plot_fn() lets us draw the function at our proposed initial values.

initial_vals <- c(t1 = 25, t2 = 62, t3 = 100, t4 = 120, k = 1, n = 0.05)

plot_fn(
  fn = "fn_piecewise",
  params = initial_vals,
  interval = c(0, 151),
  color = "black",
  base_size = 15
)

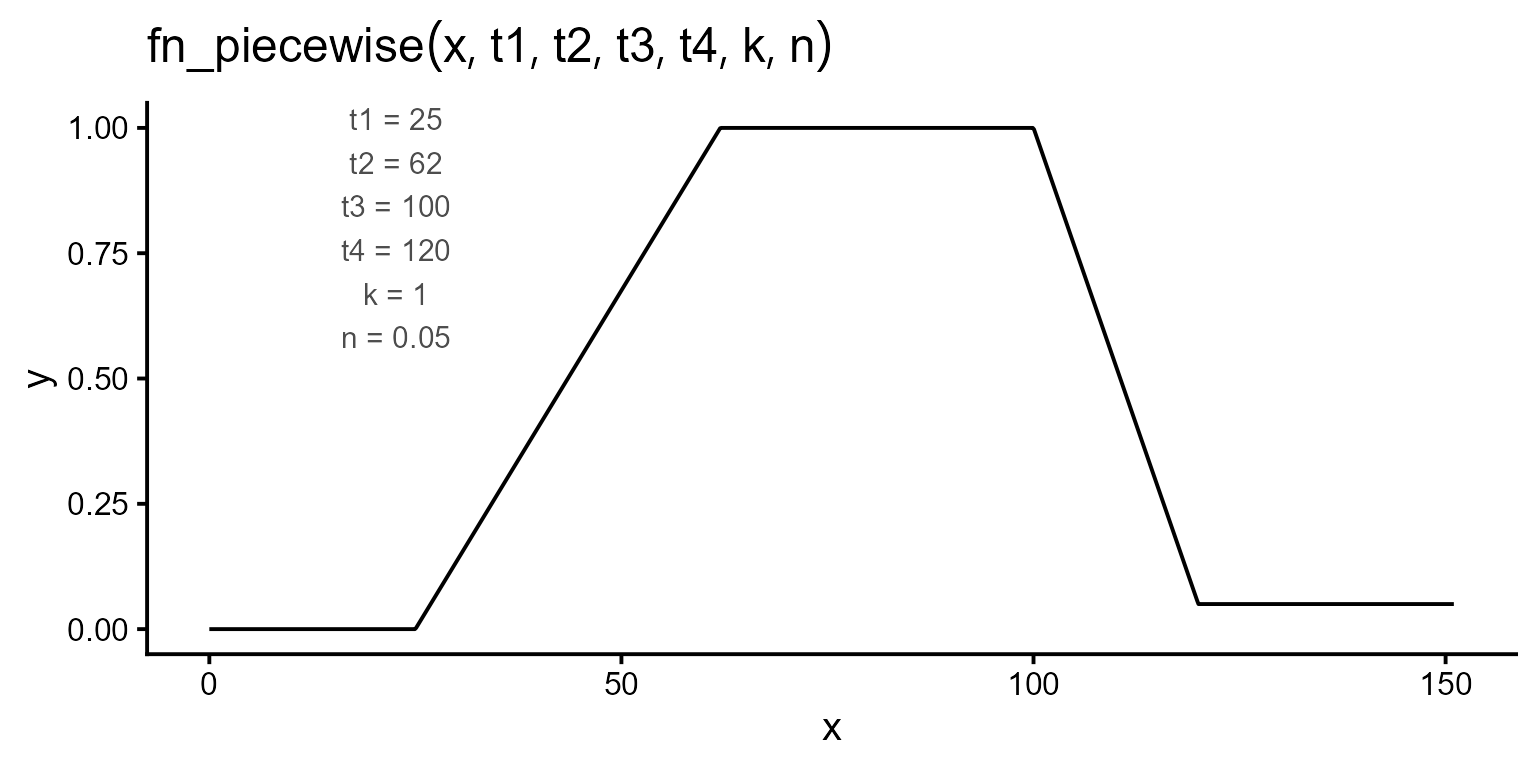

plot fn That is a good starting guess: it reproduces the four breakpoints seen in the evolution plot.

3. Fitting models

We fit 10 plots first. Scaling to the full trial will be shown at the end.

plots_ids <- unique(dt_soybean_22$plot.UID)[1:10]

mod_1 <- dt_soybean_22 |>
  modeler(
    x = time_since_sowing,
    y = Canopy_cover,
    grp = plot.UID,
    fn = "fn_piecewise",
    parameters = initial_vals,
    subset = plots_ids,
    method = c("BFGS", "subplex")
  )
print(mod_1)
#>
#> Call:
#> Canopy_cover ~ fn_piecewise(time_since_sowing, t1, t2, t3, t4, k, n)
#>
#> Residuals (`Standardized`):
#>     Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
#> -2.74326 -0.41092  0.03308  0.06519  0.63805  2.74532
#>
#> Optimization Results `head()`:
#>          uid   t1   t2  t3  t4     k       n    sse
#>  FPSB0160001 31.5 69.0 106 117 0.888 0.00815 0.0529
#>  FPSB0160002 28.2 67.6 115 118 0.841 0.02974 0.0615
#>  FPSB0160003 23.0 69.0 105 116 0.832 0.04308 0.1012
#>  FPSB0160004 24.5 75.8 107 117 0.863 0.04366 0.0763
#>
#> Metrics:
#>  Groups      Timing Convergence  Iterations
#>      10 2.6945 secs        100% 2149.7 (id)

Passing more than one optimizer to method makes modeler() try each and keep the best solution per plot. Use list_methods() to see the full set of available optimizers.

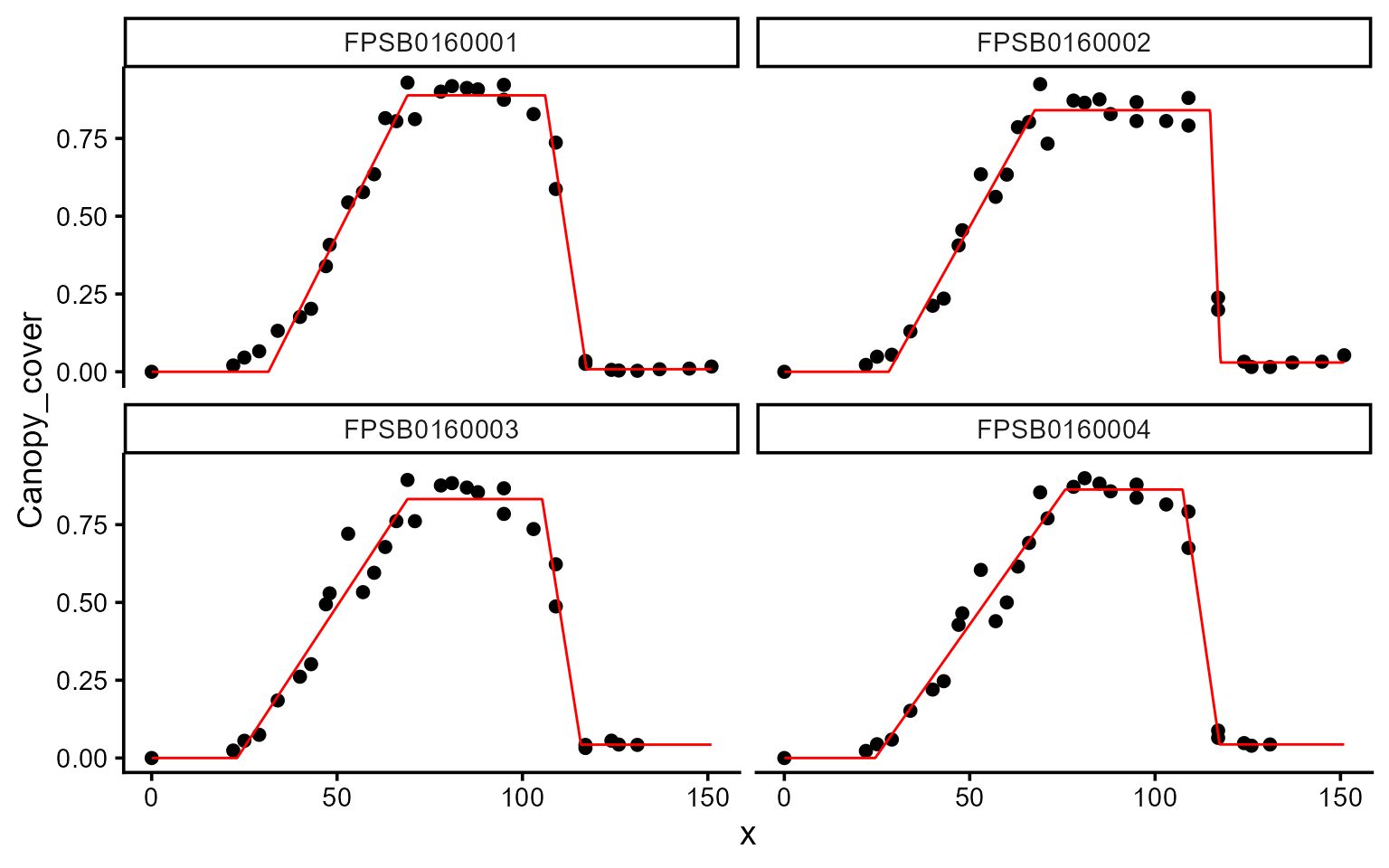

plot(mod_1, id = plots_ids[1:4])

plot fit

knitr::kable(mutate_if(mod_1$param, is.numeric, round, 2))
uid t1 t2 t3 t4 k n sse fn_name
FPSB0160001 31.51 69.00 106.13 117.28 0.89 0.01 0.05 fn_piecewise
FPSB0160002 28.17 67.55 114.84 117.66 0.84 0.03 0.06 fn_piecewise
FPSB0160003 23.05 69.00 105.33 115.79 0.83 0.04 0.10 fn_piecewise
FPSB0160004 24.50 75.78 107.42 117.40 0.86 0.04 0.08 fn_piecewise
FPSB0160005 26.77 69.00 108.24 119.43 0.84 0.03 0.08 fn_piecewise
FPSB0160006 36.96 75.33 108.23 125.35 0.92 0.03 0.07 fn_piecewise
FPSB0160007 31.22 67.95 107.02 117.27 0.88 0.02 0.05 fn_piecewise
FPSB0160008 32.49 70.43 108.59 121.57 0.88 0.02 0.05 fn_piecewise
FPSB0160009 32.89 74.62 107.50 119.37 0.87 0.02 0.05 fn_piecewise
FPSB0160010 30.23 67.98 107.21 117.06 0.88 0.02 0.06 fn_piecewise

3.1. Extracting model coefficients and uncertainty measures

coef(), confint(), and vcov() return the parameter estimates, confidence intervals, and variance-covariance matrices, respectively.

coef(mod_1, id = plots_ids[1])
#> # A tibble: 6 × 7
#>   uid         fn_name      coefficient  solution std.error `t value` `Pr(>|t|)`
#>   <chr>       <chr>        <chr>           <dbl>     <dbl>     <dbl>      <dbl>
#> 1 FPSB0160001 fn_piecewise t1           31.5        1.20      26.2     9.59e-21
#> 2 FPSB0160001 fn_piecewise t2           69          0.879     78.5     2.12e-33
#> 3 FPSB0160001 fn_piecewise t3          106.         0.648    164.      5.25e-42
#> 4 FPSB0160001 fn_piecewise t4          117.         0.702    167.      2.98e-42
#> 5 FPSB0160001 fn_piecewise k             0.888      0.0141    63.0     7.69e-31
#> 6 FPSB0160001 fn_piecewise n             0.00815    0.0172     0.474   6.39e- 1
confint(mod_1, id = plots_ids[1])
#> # A tibble: 6 × 7
#>   uid         fn_name      coefficient  solution std.error ci_lower ci_upper
#>   <chr>       <chr>        <chr>           <dbl>     <dbl>    <dbl>    <dbl>
#> 1 FPSB0160001 fn_piecewise t1           31.5        1.20    29.0     34.0
#> 2 FPSB0160001 fn_piecewise t2           69          0.879   67.2     70.8
#> 3 FPSB0160001 fn_piecewise t3          106.         0.648  105.     107.
#> 4 FPSB0160001 fn_piecewise t4          117.         0.702  116.     119.
#> 5 FPSB0160001 fn_piecewise k             0.888      0.0141   0.860    0.917
#> 6 FPSB0160001 fn_piecewise n             0.00815    0.0172  -0.0271   0.0434
vcov(mod_1, id = plots_ids[1])$FPSB0160001 |> round(digits = 3)
#>        t1     t2     t3     t4      k      n
#> t1  1.443 -0.354 -0.029  0.001  0.002  0.000
#> t2 -0.354  0.773 -0.059  0.001  0.005  0.000
#> t3 -0.029 -0.059  0.420 -0.204 -0.003  0.001
#> t4  0.001  0.001 -0.204  0.492  0.000 -0.005
#> k   0.002  0.005 -0.003  0.000  0.000  0.000
#> n   0.000  0.000  0.001 -0.005  0.000  0.000
#> attr(,"fn_name")
#> [1] "fn_piecewise"
knitr::kable(mutate_if(metrics(mod_1), is.numeric, round, 2))
uid fn_name var SSE MAE MSE RMSE R2 n
FPSB0160001 fn_piecewise Canopy_cover 0.05 0.03 0 0.04 0.99 33
FPSB0160002 fn_piecewise Canopy_cover 0.06 0.03 0 0.04 0.99 33
FPSB0160003 fn_piecewise Canopy_cover 0.10 0.05 0 0.06 0.97 30
FPSB0160004 fn_piecewise Canopy_cover 0.08 0.04 0 0.05 0.98 30
FPSB0160005 fn_piecewise Canopy_cover 0.08 0.04 0 0.05 0.98 31
FPSB0160006 fn_piecewise Canopy_cover 0.07 0.03 0 0.05 0.98 32
FPSB0160007 fn_piecewise Canopy_cover 0.05 0.03 0 0.04 0.99 33
FPSB0160008 fn_piecewise Canopy_cover 0.05 0.03 0 0.04 0.99 33
FPSB0160009 fn_piecewise Canopy_cover 0.05 0.03 0 0.04 0.99 33
FPSB0160010 fn_piecewise Canopy_cover 0.06 0.03 0 0.04 0.99 33

4. Plotting options

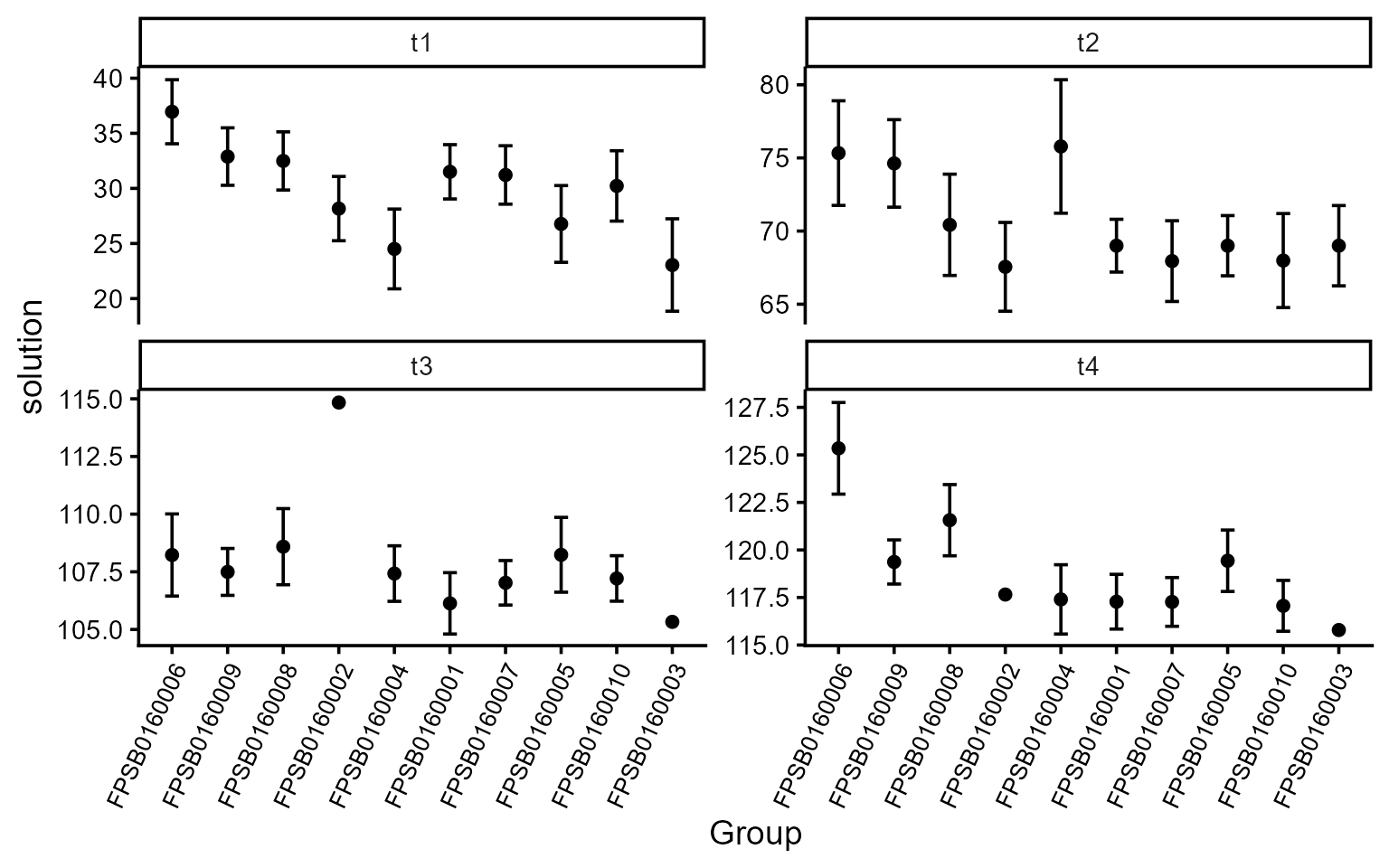

type = 2 shows the coefficients with their confidence intervals. Restricting parm to the four time parameters keeps them on a common scale:

mod_1 |>
  plot(type = 2, id = plots_ids, parm = c("t1", "t2", "t3", "t4"), label_size = 10) +
  theme(axis.text.x = element_text(angle = 65, hjust = 1))

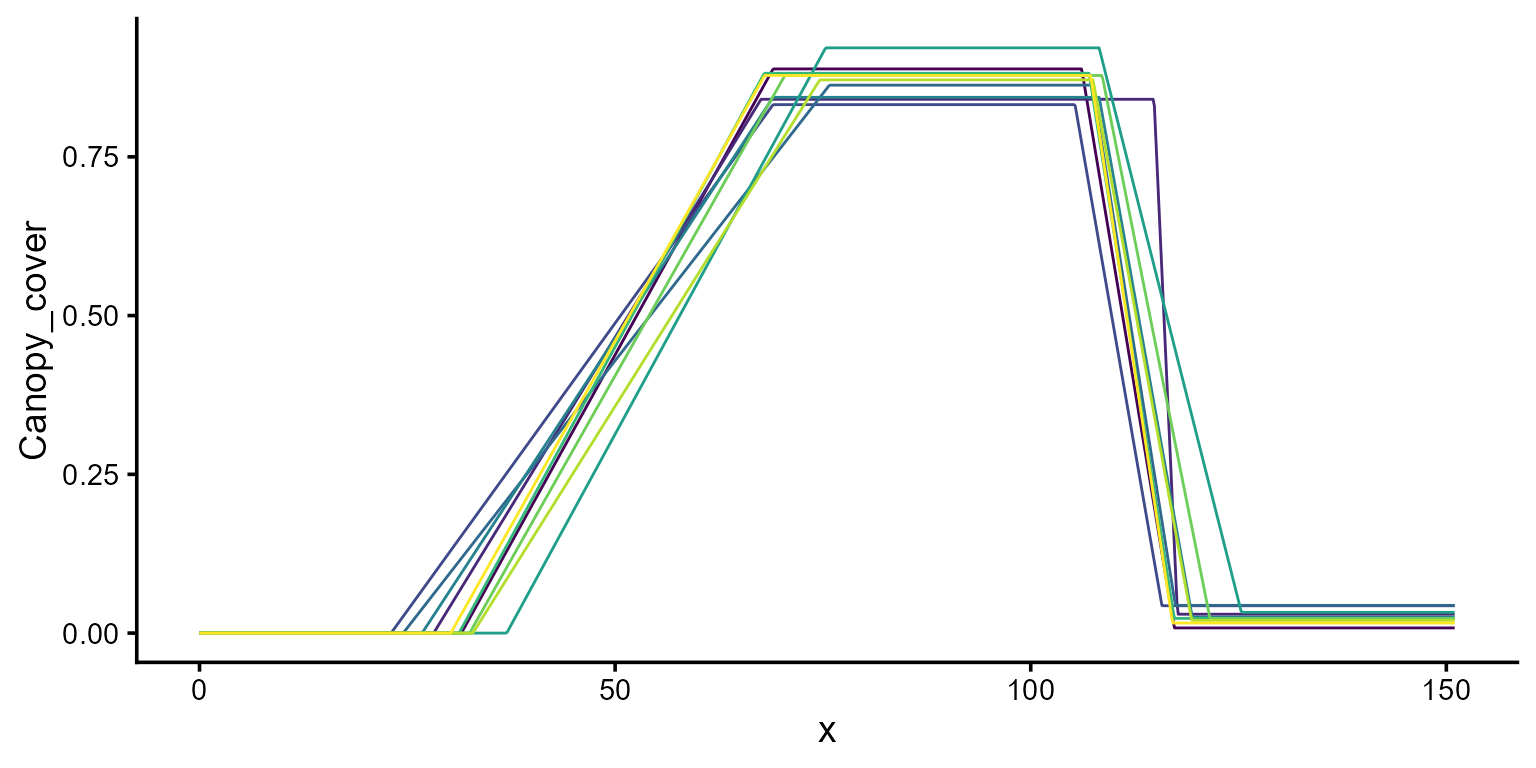

plot coeftype = 3 overlays every fitted curve, which is a good way to spot a plot that behaved differently from the rest:

plot(mod_1, type = 3, id = plots_ids)

plot curves

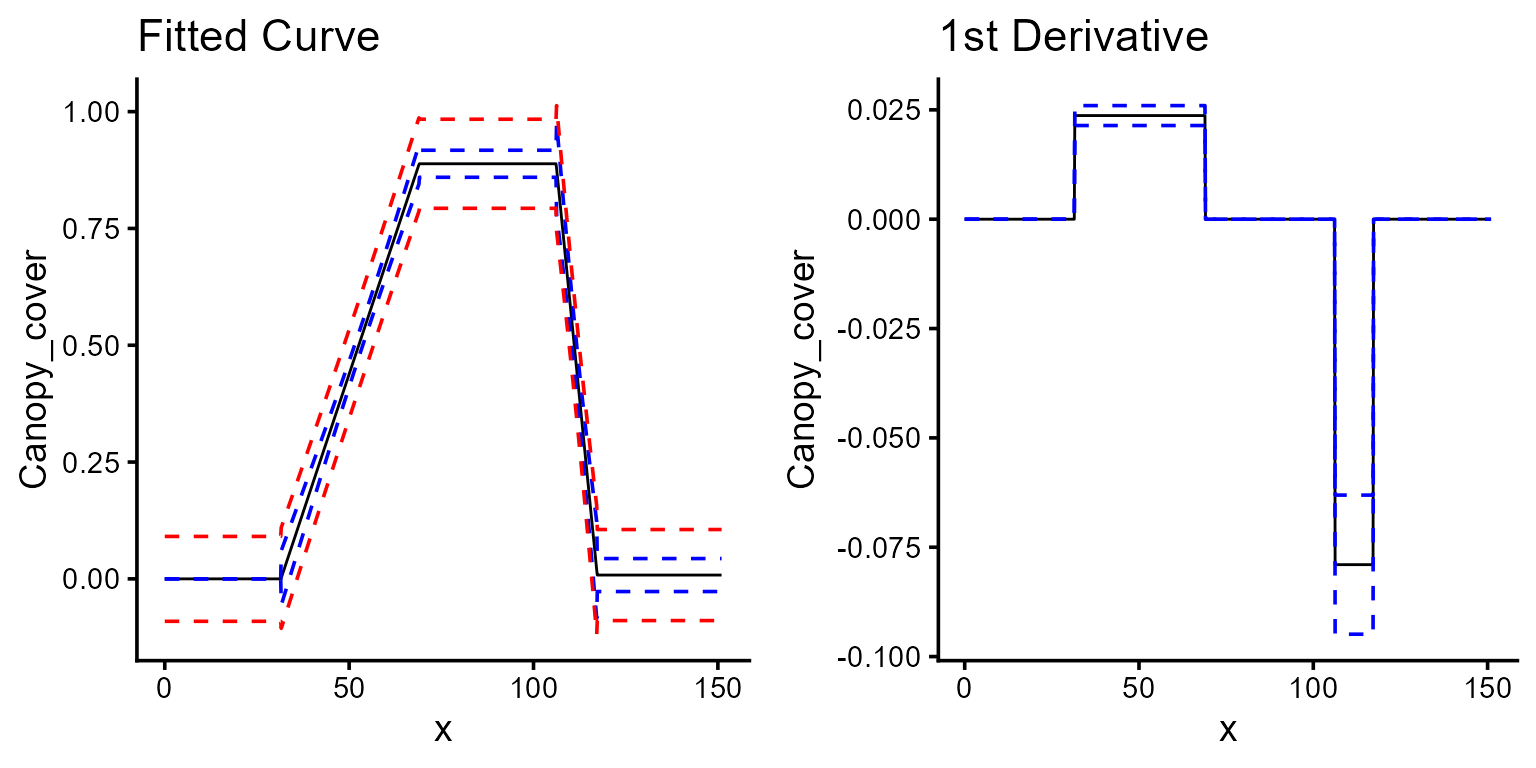

type = 4 adds confidence (blue) and prediction (red) intervals, and type = 5 plots the first derivative. For this function, the canopy expansion and senescence rates appear as two flat steps:

a <- plot(mod_1, type = 4, id = plots_ids[1], color = "black")
b <- plot(mod_1, type = 5, id = plots_ids[1], color = "black")
ggarrange(a, b)

plot fit and derivative

5. Deriving canopy development traits

The fitted parameters are already stage estimates, but some other interesting quantities we usually compare are differences between them. predict.modeler() accepts a formula involving the fitted parameters and propagates their uncertainty:

durations <- rbind(
  predict(mod_1, formula = ~ t2 - t1, id = plots_ids),
  predict(mod_1, formula = ~ t3 - t2, id = plots_ids),
  predict(mod_1, formula = ~ t4 - t3, id = plots_ids)
)
durations |>
  mutate_if(is.numeric, round, 2) |>
  filter(uid %in% "FPSB0160001") |>
  select(-fn_name) |>
  knitr::kable()
uid formula predicted.value std.error
FPSB0160001 t2 - t1 37.49 1.71
FPSB0160001 t3 - t2 37.13 1.15
FPSB0160001 t4 - t3 11.15 1.15

These three read as the duration of canopy expansion, the length of the full-canopy plateau, and the duration of senescence.

We can also get rates rather than durations — the slope of the expansion phase is k / (t2 - t1):

predict(mod_1, formula = ~ k / (t2 - t1), id = plots_ids[1:2]) |>
  mutate_if(is.numeric, round, 3) |>
  knitr::kable()
uid fn_name formula predicted.value std.error
FPSB0160001 fn_piecewise k/(t2 - t1) 0.024 0.001
FPSB0160002 fn_piecewise k/(t2 - t1) 0.021 0.001

Integrating the fitted curve provides the area under the canopy-cover curve, expressed in canopy-cover days:

predict(mod_1, x = c(0, 151), type = "auc", id = plots_ids[1:3]) |>
  mutate_if(is.numeric, round, 2) |>
  knitr::kable()
uid fn_name x_min x_max predicted.value std.error
FPSB0160001 fn_piecewise 0 151 54.92 0.99
FPSB0160002 fn_piecewise 0 151 58.52 1.09
FPSB0160003 fn_piecewise 0 151 55.45 1.46

6. Modeling all plots using parallel processing

Finally, the same call scales to all 78 plots by adding the options argument.

mod <- dt_soybean_22 |>
  modeler(
    x = time_since_sowing,
    y = Canopy_cover,
    grp = plot.UID,
    keep = c(location, Year),
    fn = "fn_piecewise",
    parameters = initial_vals,
    method = c("BFGS", "subplex"),
    options = list(progress = TRUE, parallel = TRUE, workers = 5)
  )

7. Conclusion

Using the publicly available soybean ground cover dataset from Keller et al. (2026), we demonstrated how flexFitR can transform time-series observations into interpretable growth parameters. We thank the authors for making the dataset publicly available.

References
